| Product Description:

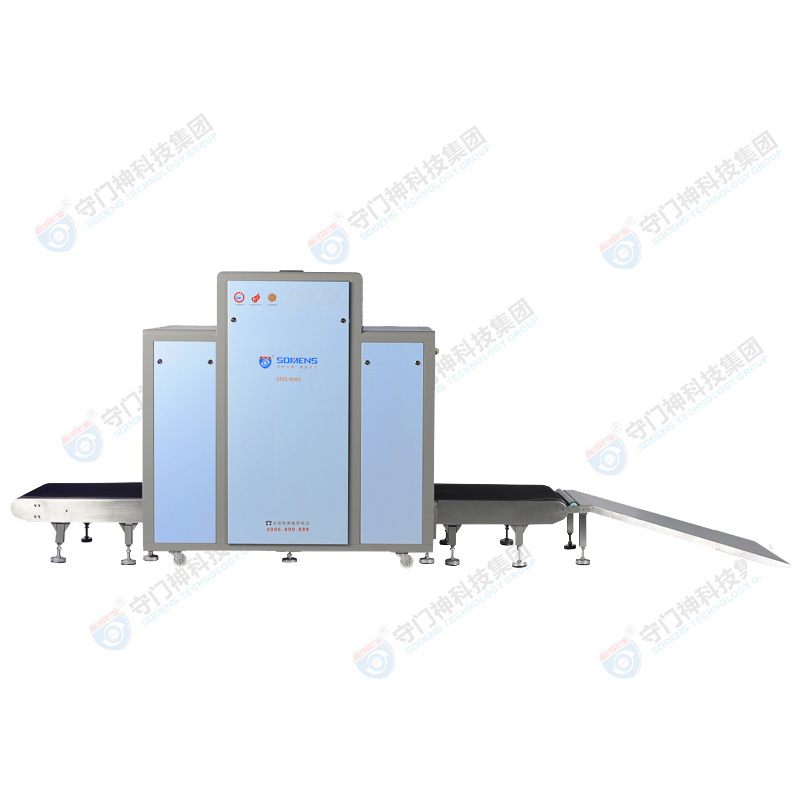

SMS-8065 medium-channel X-ray machine has passed the certification of the Ministry of Public Security, leading the performance parameters, with a one-button switch, energy saving and environmental protection.
| Product Application:
An important part of the public security armed police, courts, prisons, subways, customs stations, port terminals, logistics express, hotel schools, factory enterprises and other public places. It is mainly used to detect prohibited items and inflammable and explosive materials hidden in small and medium-sized goods, parcels, mails, bags, and other items, such as controlled knives, firearms, fireworks, alcohol, and gasoline sulfuric acid.
SMS-8065 technical parameters |
|
channel size |
800mm (width) × 650mm (height) |
Dimensions |
4071mm (length) × 1102mm (width) × 1554mm (height) |
Conveyor speed |
0.22m/s |
Conveyor maximum load |
220kg |
Film security |
Safe for ISO1600 Film |
penetration |
38mm steel plate |
tube voltage |
150kv |
tube current |
0.6mA |
Ray beam launch angle |
80° |
Single dose check |
≦1.17μSv/h |
Leakage dose rate |
≦0.14μSv/h |
Power Loss |
<1kw |
Working voltage |
220VAC(±10%) 50/60Hz |
Cooling Work Cycle |
Sealed oil cooling / 100% |
